Tuesday, January 29, 2008

BlazeDS Test Drive sample in Grails



In my previous blog entry I introduced the Grails Flex Plugin. I got some reactions on this post and one of them was from Alexander Negoda (aka greendog), who had some problems getting BlazeDS Test Drive Sample 5: Updating data to work on Grails.

A good reason for me to implement the sample myself, and write a small tutorial!


  1. I assume you have Grails already installed and know the basics. This plugin requires requires the latest and greatest Grails 1.0-final development build. It is not compatible with Grails 1.0-RC4.

  2. Create a new Grails application by executing grails create-app product from the Grails command line.

  3. From within the product application folder, install the Flex plugin by executing: grails install-plugin flex
    All Flex libraries and configuration files will be copied into your application's web-app folder.

  4. Create the Product domain class by executing: grails create-domain-class product

  5. Open Product.groovy and add properties so your domain class looks like:

    class Product {
    String name
    String description
    String image
    String category
    Double price
    Integer qtyInStock
    }

  6. Create the Product service by executing: grails create-service product

  7. Open ProductService.groovy and change the class so it looks like:

    class ProductService {

    static expose = ['flex-remoting']

    def getProducts() {
    return Product.list();
    }

    def update(Product product) {
    def p = Product.get(product.id)
    if (p) {
    p.properties = product.properties
    p.save()
    }
    }

    }

    Notice that we expose the service as a flex-remoting service.

  8. Now we are finished with the domain and service layer and we can focus on the Flex front-end. Within the application's web-app folder create a file called main.mxml and add the following content:

    <?xml version="1.0" encoding="utf-8"?>
    <mx:Application xmlns:mx="http://www.adobe.com/2006/mxml" xmlns="*" layout="horizontal"
    creationComplete="srv.getProducts()" viewSourceURL="srcview/index.html">

    <mx:RemoteObject id="srv" destination="productService"/>

    <mx:Panel title="Catalog" width="100%" height="100%">
    <mx:DataGrid id="list" dataProvider="{srv.getProducts.lastResult}" width="100%" height="100%"/>
    </mx:Panel>

    <ProductForm product="{Product(list.selectedItem)}"/>

    </mx:Application>

  9. Within the application's web-app folder create a file called ProductForm.mxml and add the following content:

    <?xml version="1.0" encoding="utf-8"?>
    <mx:Panel xmlns:mx="http://www.adobe.com/2006/mxml" xmlns="*"
    title="Details" width="100%" height="100%">

    <Product id="product"
    name="{productName.text}"
    category="{category.text}"
    price="{Number(price.text)}"
    image="{image.text}"
    description="{description.text}"/>

    <mx:RemoteObject id="srv" destination="productService"/>

    <mx:Form width="100%">

    <mx:FormItem label="Name">
    <mx:TextInput id="productName" text="{product.name}"/>
    </mx:FormItem>

    <mx:FormItem label="Category">
    <mx:TextInput id="category" text="{product.category}"/>
    </mx:FormItem>

    <mx:FormItem label="Image">
    <mx:TextInput id="image" text="{product.image}"/>
    </mx:FormItem>

    <mx:FormItem label="Price">
    <mx:TextInput id="price" text="{product.price}"/>
    </mx:FormItem>

    <mx:FormItem label="Description" width="100%">
    <mx:TextArea id="description" text="{product.description}" width="100%" height="100"/>
    </mx:FormItem>

    </mx:Form>

    <mx:ControlBar>
    <mx:Button label="Update" click="srv.update(product);"/>
    </mx:ControlBar>

    </mx:Panel>

  10. Within the application's web-app folder create a file called Product.as and add the following content:

    package
    {
    [Bindable]
    [RemoteClass(alias="Product")]
    public class Product
    {
    public function Product()
    {
    }

    public var id:int;

    public var name:String;

    public var description:String;

    public var image:String;

    public var category:String;

    public var price:Number;

    public var qtyInStock:int;

    }
    }

    Note that the main.mxml, ProductForm.mxml and Product.as files are for 99% a copy from the BlazeDS Test Drive sample. In main.mxml and ProductForm.mxml only the destination id of the RemoteObject was changed. And in Product.as the alias of the RemoteClass and the name of the productId column was changed.

  11. Before we run the example, let's add some data to the embedded HSQLDB database. In your application's BootStrap.groovy class create some records as shown below:

    class BootStrap {

    def init = { servletContext ->
    new Product(name: 'Nokia 6010', category: '6000', image: 'Nokia_6010.gif', price: 99.00, description: 'Easy to use without sacrificing style, the Nokia 6010 phone offers functional voice communication supported by text messaging, multimedia messaging, mobile internet, games and more.', qtyInStock: 21).save()
    new Product(name: 'Nokia 3100 Blue', category: '9000', image: 'Nokia_3100_blue.gif', price: 109.00, description: 'Light up the night with a glow-in-the-dark cover - when it is charged with light you can easily find your phone in the dark. When you get a call, the Nokia 3100 phone flashes in tune with your ringing tone. And when you snap on a Nokia Xpress-on gaming cover, you will get luminescent light effects in time to the gaming action.', qtyInStock: 99).save()
    new Product(name: 'Nokia 3100 Pink', category: '3000', image: 'Nokia_3100_pink.gif', price: 139.00, description: 'Light up the night with a glow-in-the-dark cover - when it is charged with light you can easily find your phone in the dark. When you get a call, the Nokia 3100 phone flashes in tune with your ringing tone. And when you snap on a Nokia Xpress-on gaming cover, you will get luminescent light effects in time to the gaming action.', qtyInStock: 30).save()
    new Product(name: 'Nokia 3120', category: '3000', image: 'Nokia_3120.gif', price: 159.99, description: 'Designed for both business and pleasure, the elegant Nokia 3120 phone offers a pleasing mix of features. Enclosed within its chic, compact body, you will discover the benefits of tri-band compatibility, a color screen, MMS, XHTML browsing, cheerful screensavers, and much more.', qtyInStock: 10).save()
    new Product(name: 'Nokia 3220', category: '3000', image: 'Nokia_3220.gif', price: 199.00, description: 'The Nokia 3220 phone is a fresh new cut on some familiar ideas - animate your MMS messages with cute characters, see the music with lights that flash in time with your ringing tone, download wallpapers and screensavers with matching color schemes for the interface.', qtyInStock: 20).save()
    new Product(name: 'Nokia 3650', category: '3000', image: 'Nokia_3650.gif', price: 200.00, description: 'Messaging is more personal, versatile and fun with the Nokia 3650 camera phone. Capture experiences as soon as you see them and send the photos you take to you friends and family.', qtyInStock: 11).save()
    new Product(name: 'Nokia 6820', category: '6000', image: 'Nokia_6820.gif', price: 299.99, description: 'Messaging just got a whole lot smarter. The Nokia 6820 messaging device puts the tools you need for rich communication - full messaging keyboard, digital camera, mobile email, MMS, SMS, and Instant Messaging - right at your fingertips, in a small, sleek device.', qtyInStock: 8).save()
    new Product(name: 'Nokia 6670', category: '6000', image: 'Nokia_6670.gif', price: 319.99, description: 'Classic business tools meet your creative streak in the Nokia 6670 imaging smartphone. It has a Netfront Web browser with PDF support, document viewer applications for email attachments, a direct printing application, and a megapixel still camera that also shoots up to 10 minutes of video.', qtyInStock: 2).save()
    new Product(name: 'Nokia 6620', category: '6000', image: 'Nokia_6620.gif', price: 329.99, description: 'Shoot a basket. Shoot a movie. Video phones from Nokia... the perfect way to save and share life\u2019s playful moments. Feel connected.', qtyInStock: 10).save()
    new Product(name: 'Nokia 3230 Silver', category: '3000', image: 'Nokia_3230_black.gif', price: 500.00, description: 'Get creative with the Nokia 3230 smartphone. Create your own ringing tones, print your mobile images, play multiplayer games over a wireless Bluetooth connection, and browse HTML and xHTML Web pages. ', qtyInStock: 10).save()
    new Product(name: 'Nokia 6680', category: '6000', image: 'Nokia_6680.gif', price: 222.00, description: 'The Nokia 6680 is an imaging smartphone that', qtyInStock: 36).save()
    new Product(name: 'Nokia 6630', category: '6000', image: 'Nokia_6630.gif', price: 379.00, description: 'The Nokia 6630 imaging smartphone is a 1.3 megapixel digital imaging device (1.3 megapixel camera sensor, effective resolution 1.23 megapixels for image capture, image size 1280 x 960 pixels).', qtyInStock: 8).save()
    new Product(name: 'Nokia 7610 Black', category: '7000', image: 'Nokia_7610_black.gif', price: 450.00, description: 'The Nokia 7610 imaging phone with its sleek, compact design stands out in any crowd. Cut a cleaner profile with a megapixel camera and 4x digital zoom. Quality prints are all the proof you need of your cutting edge savvy.', qtyInStock: 20).save()
    new Product(name: 'Nokia 7610 White', category: '7000', image: 'Nokia_7610_white.gif', price: 399.99, description: 'The Nokia 7610 imaging phone with its sleek, compact design stands out in any crowd. Cut a cleaner profile with a megapixel camera and 4x digital zoom. Quality prints are all the proof you need of your cutting edge savvy.', qtyInStock: 7).save()
    new Product(name: 'Nokia 6680', category: '6000', image: 'Nokia_6680.gif', price: 219.00, description: 'The Nokia 6680 is an imaging smartphone.', qtyInStock: 15).save()
    new Product(name: 'Nokia 9300', category: '9000', image: 'Nokia_9300_close.gif', price: 599.00, description: 'The Nokia 9300 combines popular voice communication features with important productivity applications in one well-appointed device. Now the tools you need to stay in touch and on top of schedules, email, news, and messages are conveniently at your fingertips.', qtyInStock: 26).save()
    new Product(name: 'Nokia 9500', category: '9000', image: 'Nokia_9500_close.gif', price: 799.99, description: 'Fast data connectivity with Wireless LAN. Browse the Internet in full color, on a wide, easy-to-view screen. Work with office documents not just email with attachments and memos, but presentations and databases too.', qtyInStock: 54).save()
    new Product(name: 'Nokia N90', category: '9000', image: 'Nokia_N90.gif', price: 499.00, description: 'Twist and shoot. It is a pro-photo taker. A personal video-maker. Complete with Carl Zeiss Optics for crisp, bright images you can view, edit, print and share. Meet the Nokia N90.', qtyInStock: 12).save()
    }
    def destroy = {
    }
    }

  12. Now run the application by executing grails run-app and when started open a browser and navigate to http://localhost:8080/product/main.mxml

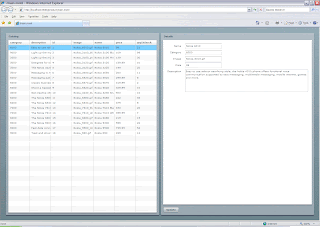

Now enjoy and look at the list of products retrieved during startup of the application. Navigate trough the product list and change the properties on the right side. Pushing the Update button will update the record in the database.

Note that updating causes a long stacktrace in the console window, but the update succeeds anyway. It's a StackOverflowError within HSQLDB; I tested the code on a MySQL database and then there is no error thrown.
